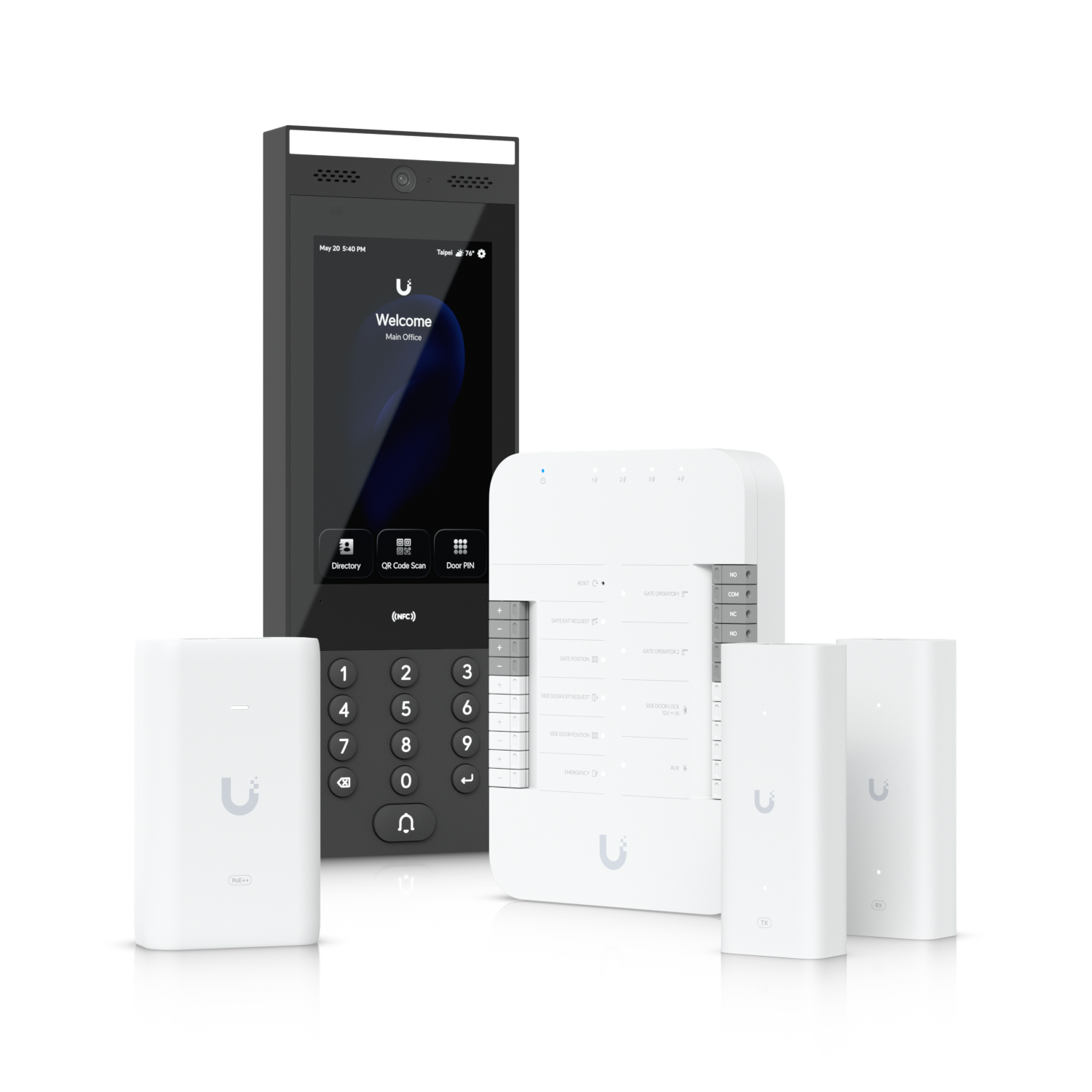

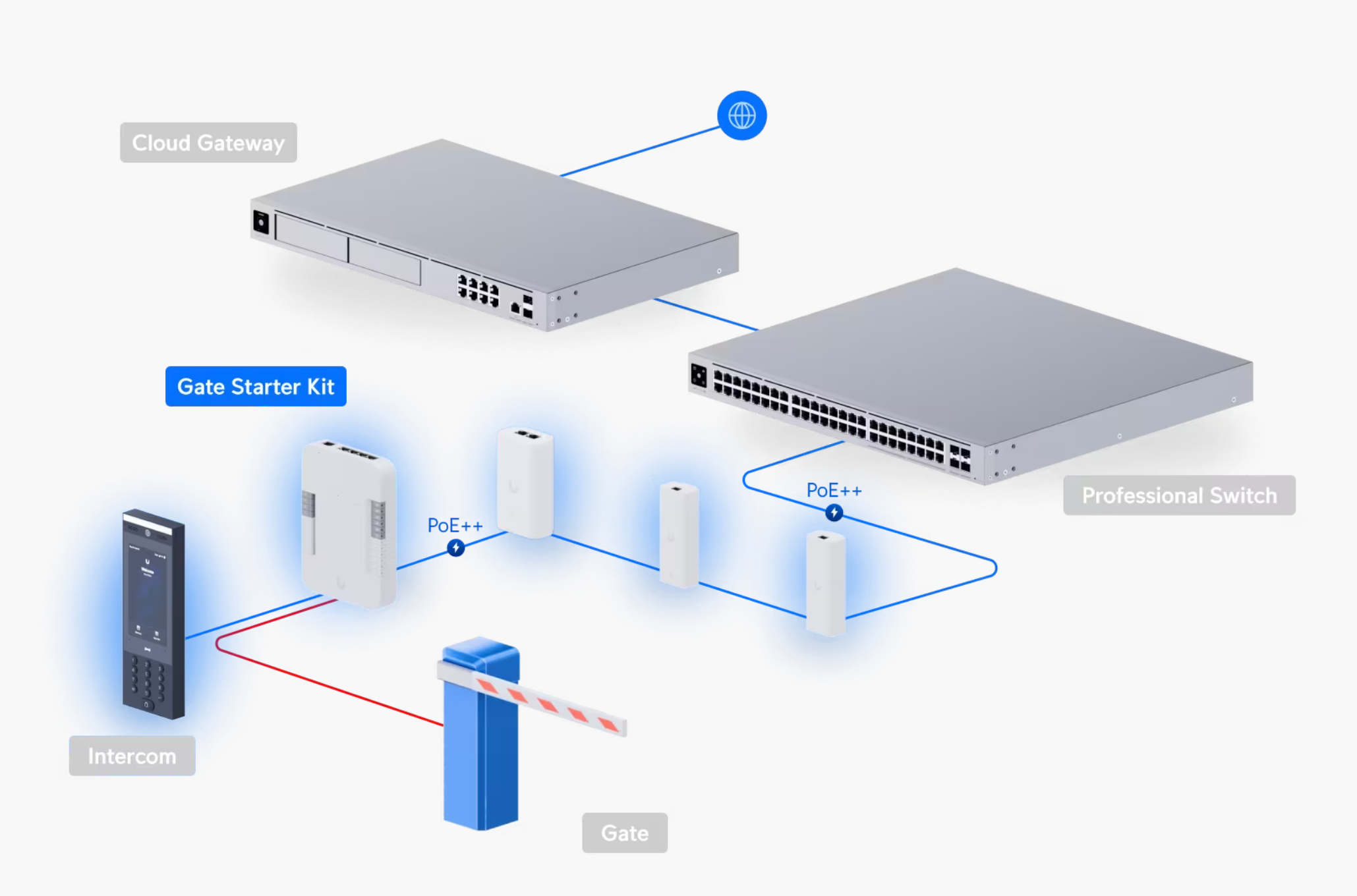

Ubiquiti Starter kit with a Gate Hub, G3 Intercom, PoE++ adapter,

Overview

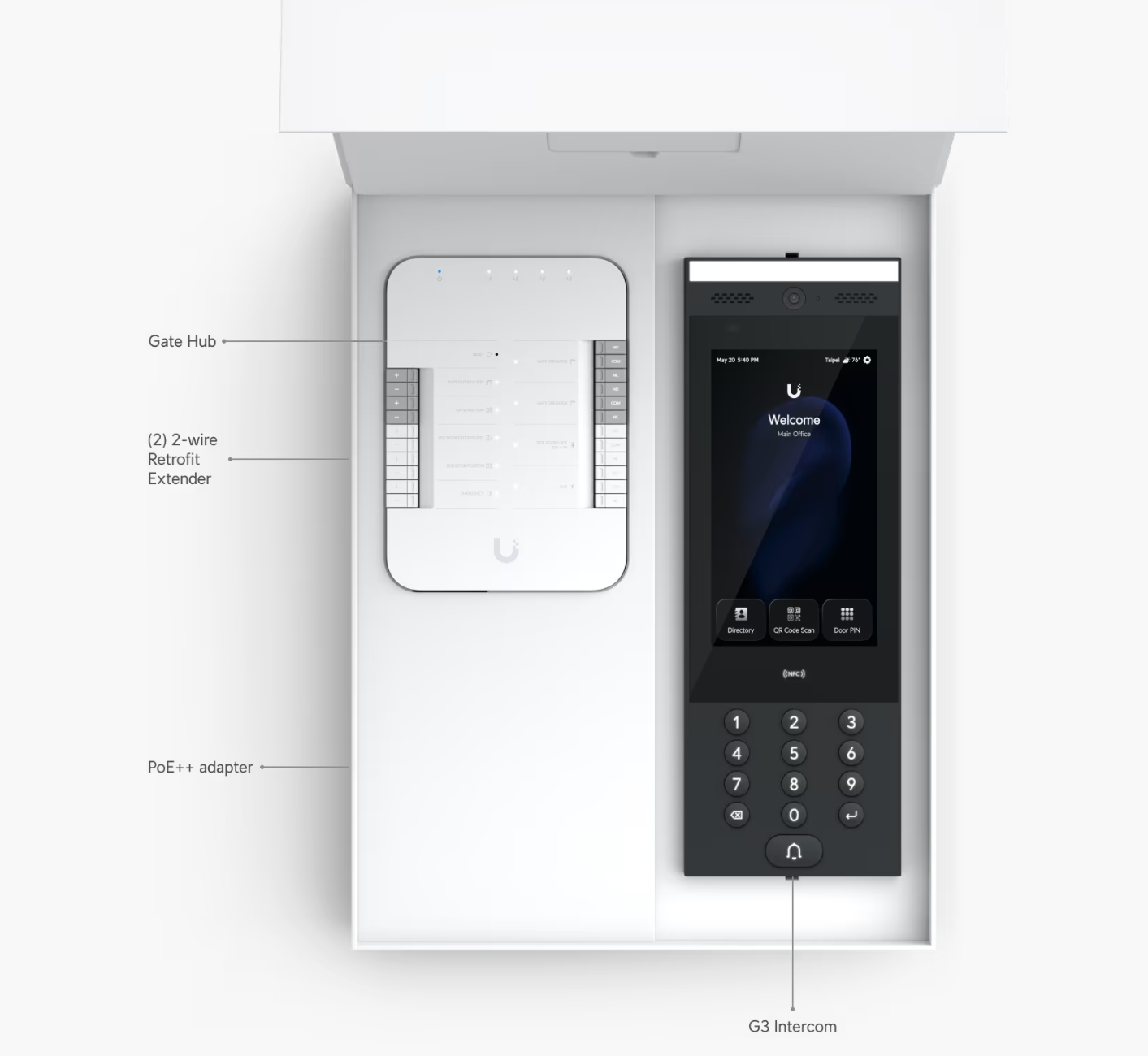

In the Box
(1) Gate Hub
(1) G3 Intercom
(1) PoE++ adapter
(2) 2-wire Retrofit Extenders
Touch Pass
10 free 1-year Touch Passes included
Learn More

Gate Hub
Dimensions
175 x 126 x 26 mm
(6.9 x 5 x 1")
Supported Doors
1 gate, 1 side door

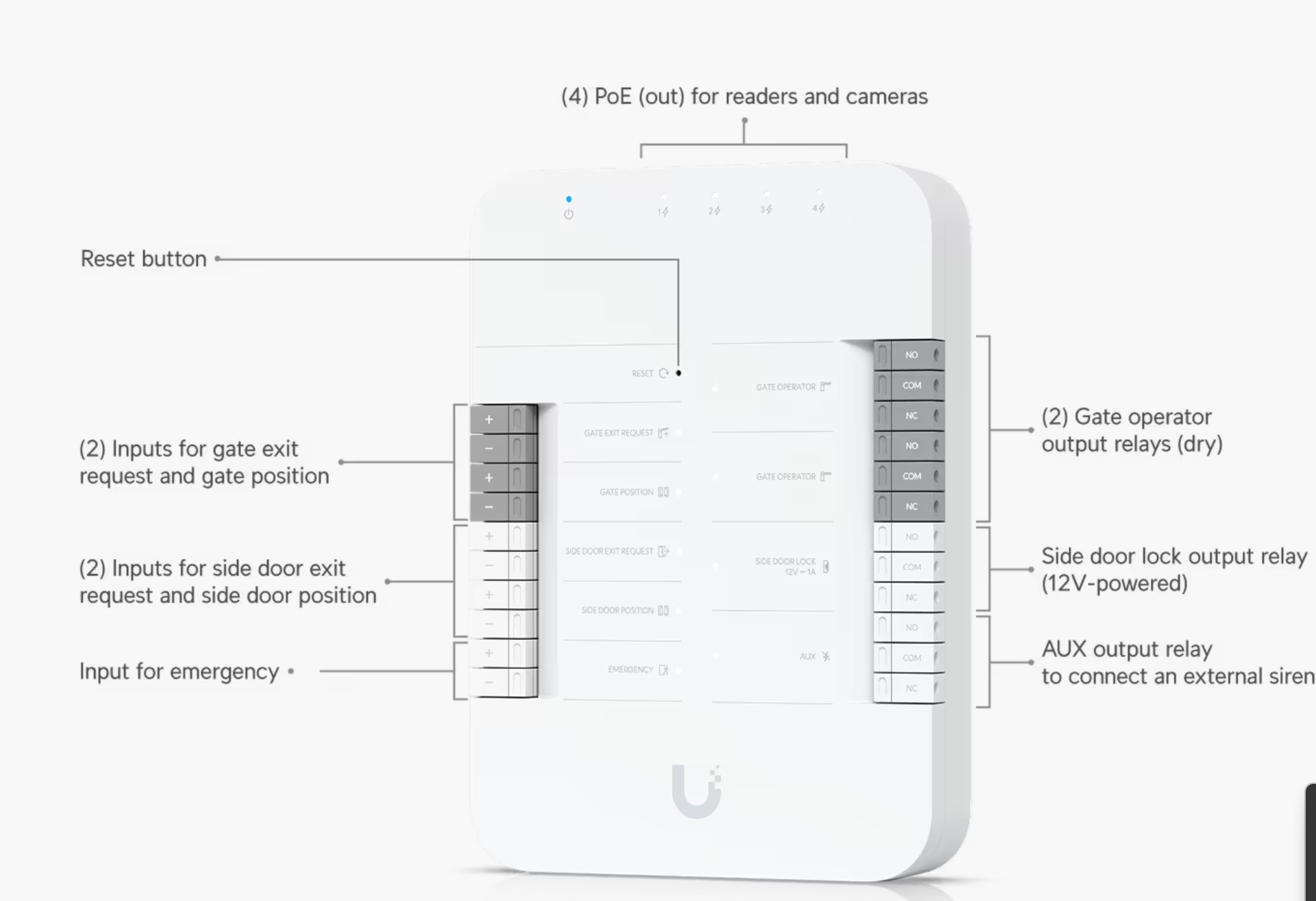

Input Terminals
(1) Gate exit request
(1) Gate position
(1) Side door exit
(1) Side door position
(1) Emergency
Power Method
PoE++
UL 294 Power-limited Class 2 PSU
UL 60950-1/62368-1 LPS/PS2 PSU
Enclosure Material
Polycarbonate
Mounting
DIN-rail (Included)
Weight
460 g (1 lb)
Indoor and Outdoor Use
Indoor only: device itself
Outdoor: with waterproof junction box
NDAA Compliant
?
UL 294 Level
Destructive attack: Level I
Line security: Level I
Endurance: Level I
Standby power: Level I
Ambient Operating Temperature
-30 to 60° C (-22 to 104° F)
Ambient Operating Humidity
5 to 90% noncondensing

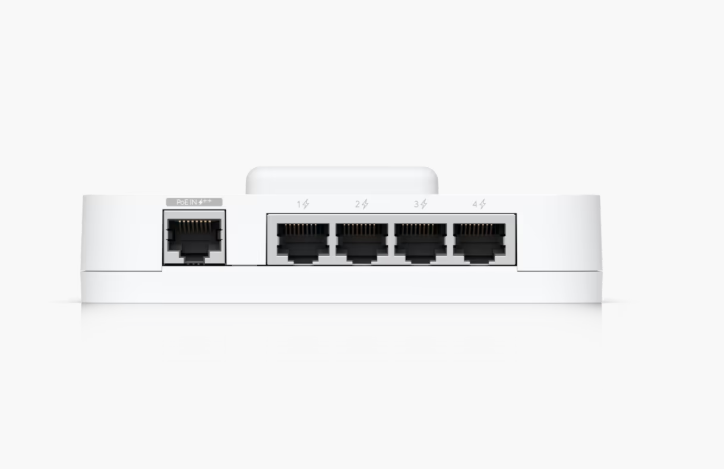

Networking Interface
(5) 10/100/1000 Base-T
PoE Interface
(1) PoE++ input, 50V DC, 1A
(4) PoE outputs, 50V DC, Max. 28W
Max. Power Consumption
22W (Without PoE output)
50W (With PoE output)
Digital Input
Gate exit request, gate position, side door exit request, side door position, emergency
Dry Output Relay
(2) Operator: rated 30V DC, up to 1A
(1) Aux: rated 30V DC, up to 1A
Powered Output Relay
Side door lock: 12V DC, up to 1A
LEDs
W/B Learn More
Button
(1) Factory-reset
Recommend Max. Cable Length
UA-Lock-Electric
(400mA)
24 AWG length: 25 m (82 ft)
22 AWG length: 42 m (138 ft)
20 AWG length: 66 m (217 ft)
18 UACC-Cable-DoorLockRelay length: 100 m (328 ft)
UA-Lock-Magnetic-540kg (500mA)
24 AWG length: 20 m (66 ft)
22 AWG length: 32 m (105 ft)
20 AWG length: 51 m (167 ft)
18 UACC-Cable-DoorLockRelay length: 80 m (262 ft)
UA-Lock-Magnetic-270kg (800mA)
24 AWG length: 12 m (29 ft)
22 AWG length: 20 m (66 ft)
20 AWG length: 30 m (98 ft)
18 UACC-Cable-DoorLockRelay length: 46 m (151 ft)
Other locks
(1A)
24 AWG length: 9 m (30 ft)
22 AWG length: 15 m (49 ft)
20 AWG length: 24 m (79 ft)
18 UACC-Cable-DoorLockRelay length: 36 m (118 ft)
PoE Cabling Requirements
Cat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site.
The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm² ) for patch cords; 24 AWG (0.21 mm² ) for horizontal or riser cable.
UL 294 Statement
Compliance with IEEE 802.3 specifications was not verified as part of UL 294.
The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.
CAN/ULC-60839-11-1 Grade
Grade assignment: I
Certifications
CE, FCC, IC, UL 294, CAN/ULC-60839-11-1
Document number, and issue date and/or revision level
UA-Hub-Gate, V01
Software Information
The software version can be checked at https://unifi.ui.com

G3 Intercom

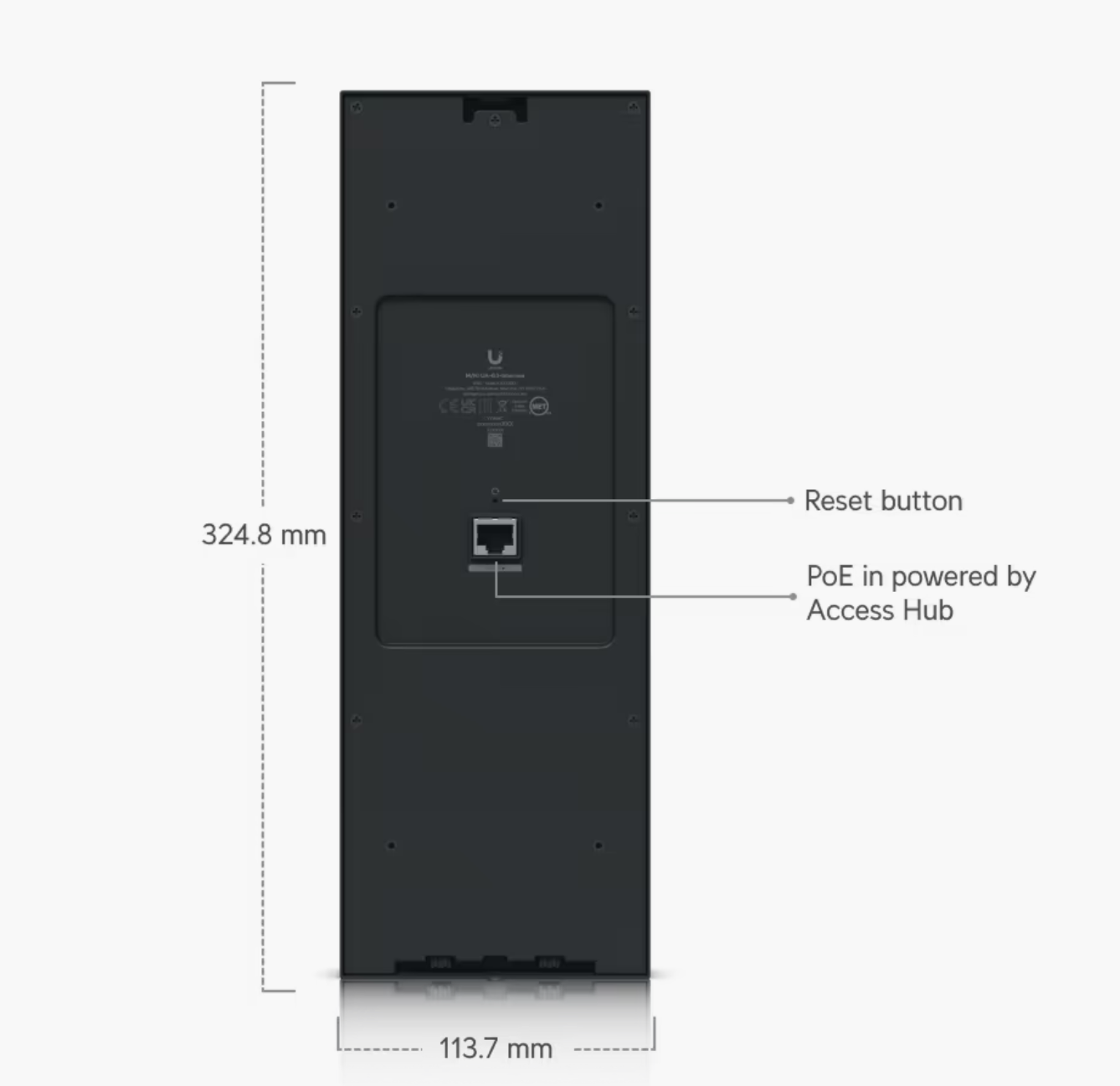

Dimensions
324.8 x 113.7 x 28.3 mm
(12.8 x 4.5 x 1.1")
Integrated Camera
?
NFC Card & Keyfob Access
?
PIN Access
?
Apple/Google Wallet
?
Mobile Unlock
?
Two-Way Intercom & Doorbell Access
?
Weatherproofing
IP65
NDAA Compliant
?
UL 294 Level
Destructive attack: Level I
Line security: Level I
Endurance: Level I
Standby power: Level I
Weight
Device: 965 g (2.1 lb)
Bracket: 445 g (1 lb)
Enclosure Material
Aluminum alloy, UV-stabilized polycarbonate, glass
Mount Material
Powder-coated stainless steel
Mounting
Wall mount, adapter to the gooseneck pedestal (Included)
Surface angle, flush mount, sunshield kit (Optional)
Indoor and Outdoor Use
?
Ambient Operating Temperature
Device: -30 to 60° C (-22 to 140° F)
Display: -25 to 60° C (-13 to 140° F)
Ambient Operating Humidity
5 to 90% noncondensing
Networking Interface
(1) GbE RJ45 port
Connectivity
BLE 4.2
NFC
Power Method
PoE
UL 294 Power-limited Class 2 PSU
UL 60950-1/62368-1 LPS/PS2 PSU
Max. Power Consumption
13W
Supported Voltage Range
48V DC
Sensors
Proximity sensor
ALS sensor
Display
177 mm (7") diagonal
Touch Screen Technology
Capacitive multi-touch
Display Luminance
Max. 1000 nits (Typical)
Resolution
1024 x 600 px
Microphone
?
Speaker
(1) Yes, 2W
NFC Frequency
13.56 MHz
NFC Read Range
< 30 mm (1.18'')
NFC Technology
ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340)
MIFARE Classic / MIFARE DESFIRE
Sony FeliCa™ (ID only)
NFC Forum tags T1T, T2T, T3T, T4T and T5T
ECP 2.0
LEDs
Amber Learn More
Buttons
(1) Factory-reset
PoE Cabling Requirements
Cat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site.
The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm² ) for patch cords; 24 AWG (0.21 mm² ) for horizontal or riser cable.
UL 294 Statement
Compliance with IEEE 802.3 specifications was not verified as part of UL 294.
The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.
CAN/ULC-60839-11-1 Grade
Grade assignment: I
Certifications
CE, FCC, IC, UL 294, CAN/ULC-60839-11-1
Document number, and issue date and/or revision level
UA-G3-Intercom, V01
Software Information
The software version can be checked at https://unifi.ui.com

Retrofit Extender
Dimensions
PoE in/out: 40 x 105 x 25 mm (1.6 x 4.1 x 1")
Adapter: 43.5 x 138 x 30 mm (1.7 x 5.4 x 1.2")
Weight
PoE in: 77 g (2.7 oz)
PoE out: 79 g (2.8 oz)
Adapter: 140 g (4.9 oz)
Enclosure Material
Polycarbonate
Mount Material
Polycarbonate
Coaxial Connector
BNC female
Networking Interface
(1) 10/100 MbE
(1) Homeplug AV
Power Method
PoE++
PoE Interface
PoE in: (1) PoE++, 50V DC, 1.2A
PoE out: (1) PoE+, 48V DC, 0.6A
Max. Power Consumption
3W (Without PoE output)
ESD/EMP Protection
Air: ±8kV, contact: ±4kV
LEDs
White
Ambient Operating Temperature
-10 to 40° C (14 to 104° F)
Ambient Operating Humidity
5 to 90% noncondensing
NDAA Compliant
?
Certifications
CE, FCC, IC

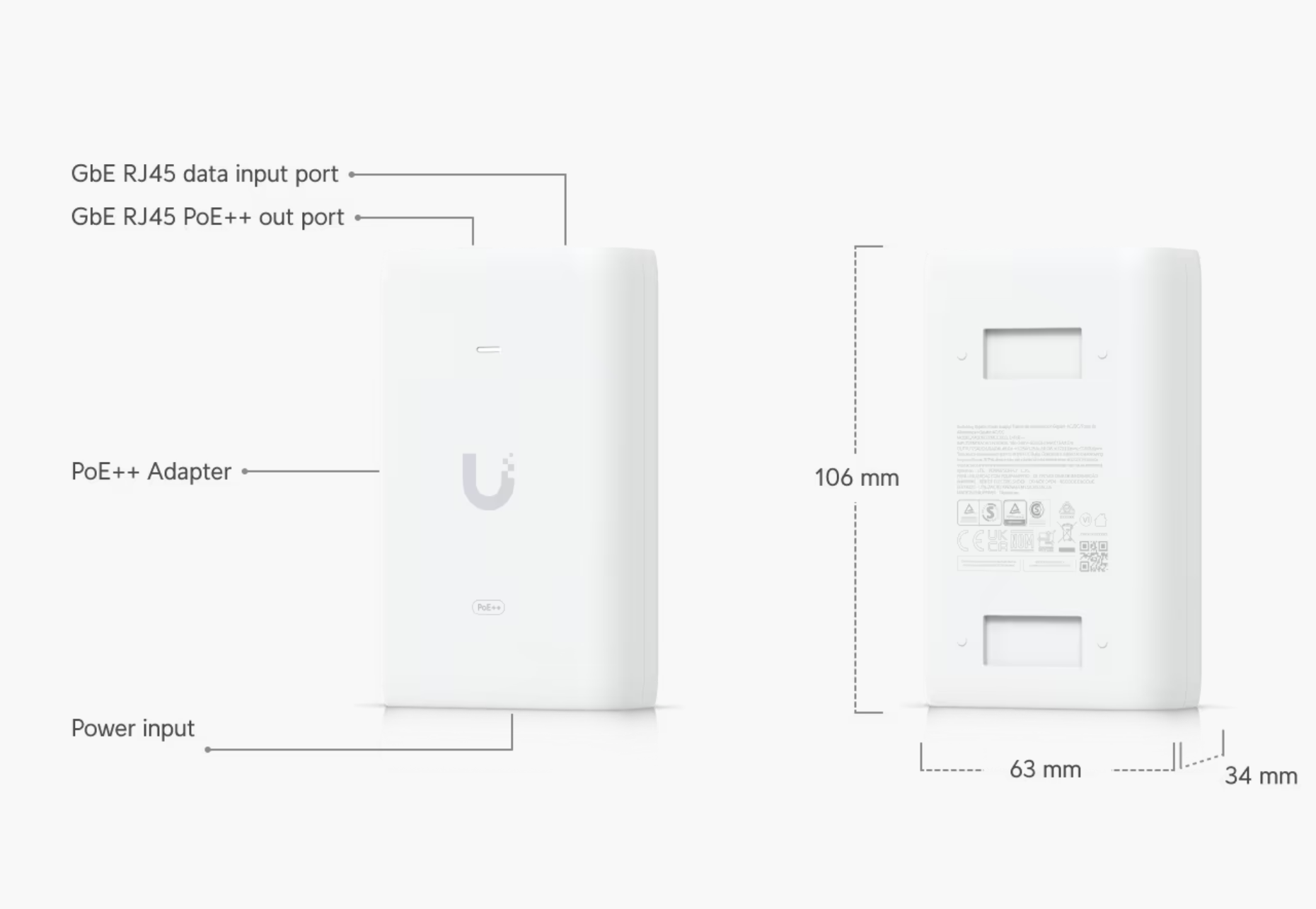

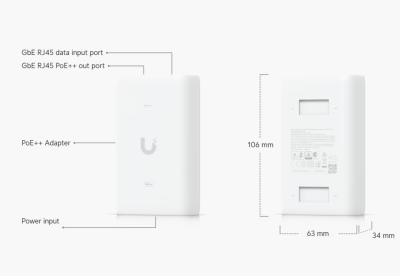

PoE++ Adapter
Model
U-PoE++
Dimensions
106 x 63 x 34 mm
(4.2 x 2.5 x 1.3")
Weight
210 g (7.4 oz)
Output Voltage
48V DC @ 1.25A
Gigabit LAN Port
?
Rated Voltage
100—240V AC @ 50/60Hz
Input Current
1.3A @ 120V AC
0.75A @ 230V AC
Inrush Current
<100A peak @ 120V AC
<200A peak @ 230V AC
Efficiency
85+%
Output Ripple
1% max.
Switching Frequency
65 kHz
Line Regulation
= 1%
Load Regulation
= 3%
4-pair Powering
Pins 1, 2, 4, 5 (+) and 3, 6, 7, 8 (-)
AC Connector
IEC-320 C6
Data In / PoE
RJ45 shielded socket
Surge Protection
Difference and common mode
Clamping Protection
11V data, 60V power
Max. Surge Discharge
1500A (8/20 µs) power
Peak Pulse Current
36A (10/1000 µs) data
Shunt Capacitance
<5 pF data
Response Time
<1 ns
Power Method
Universal AC input, 100—240V AC, 50/60 Hz
Power Supply
AC/DC
Supported Voltage Range
100—240V AC
Max. PoE+ Wattage per Port by PSE
60W
Ambient Storage Temperature
-30 to 70°C (-22 to 158° F)
Ambient Operating Temperature
0 to 40° C (32 to 104° F)
Ambient Operating Humidity
10 to 95% noncondensing
