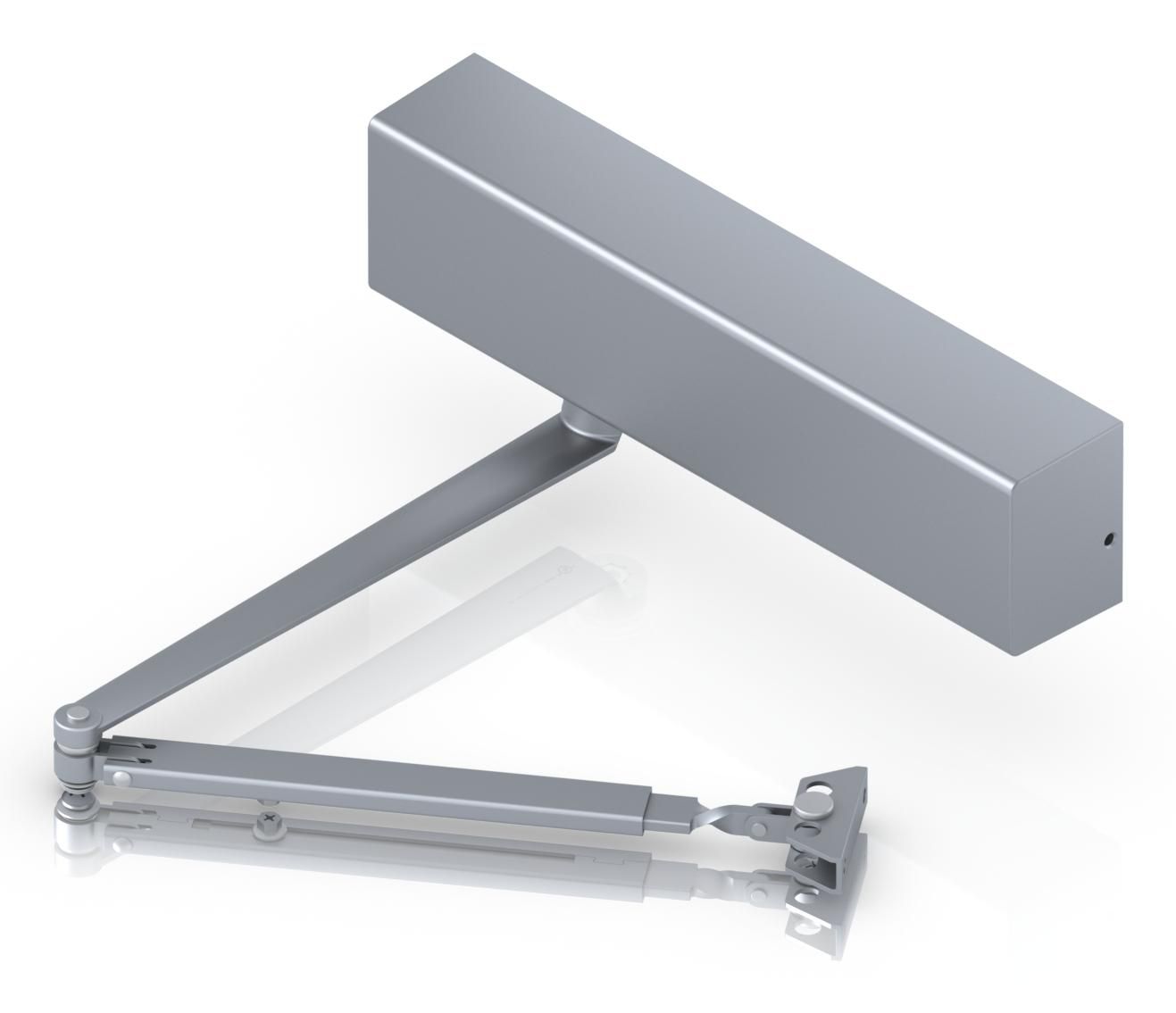

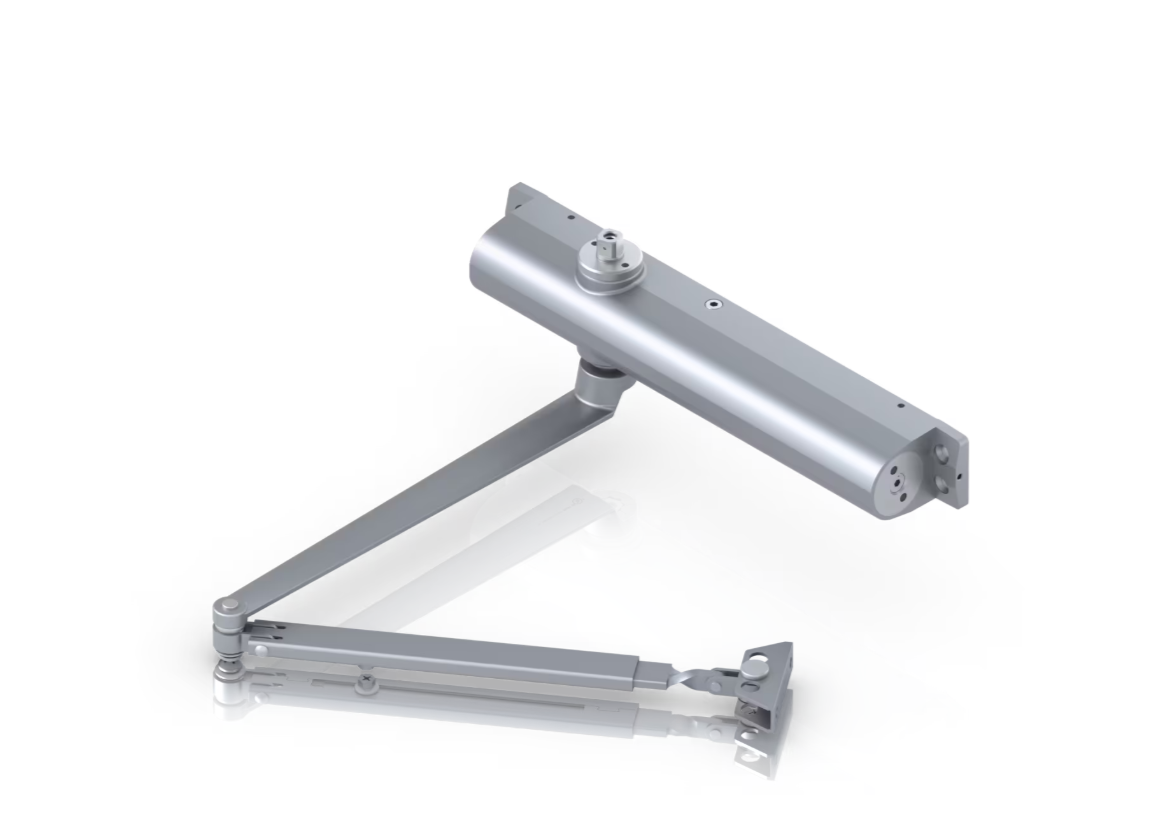

Ubiquiti A mechanical door closer that ensures controlled closure

Dimensions
Lock body: 328 x 88.6 x 53.5 mm (12.9 x 3.5 x 2.1")
Weight
3.3 kg (7.3 lb)

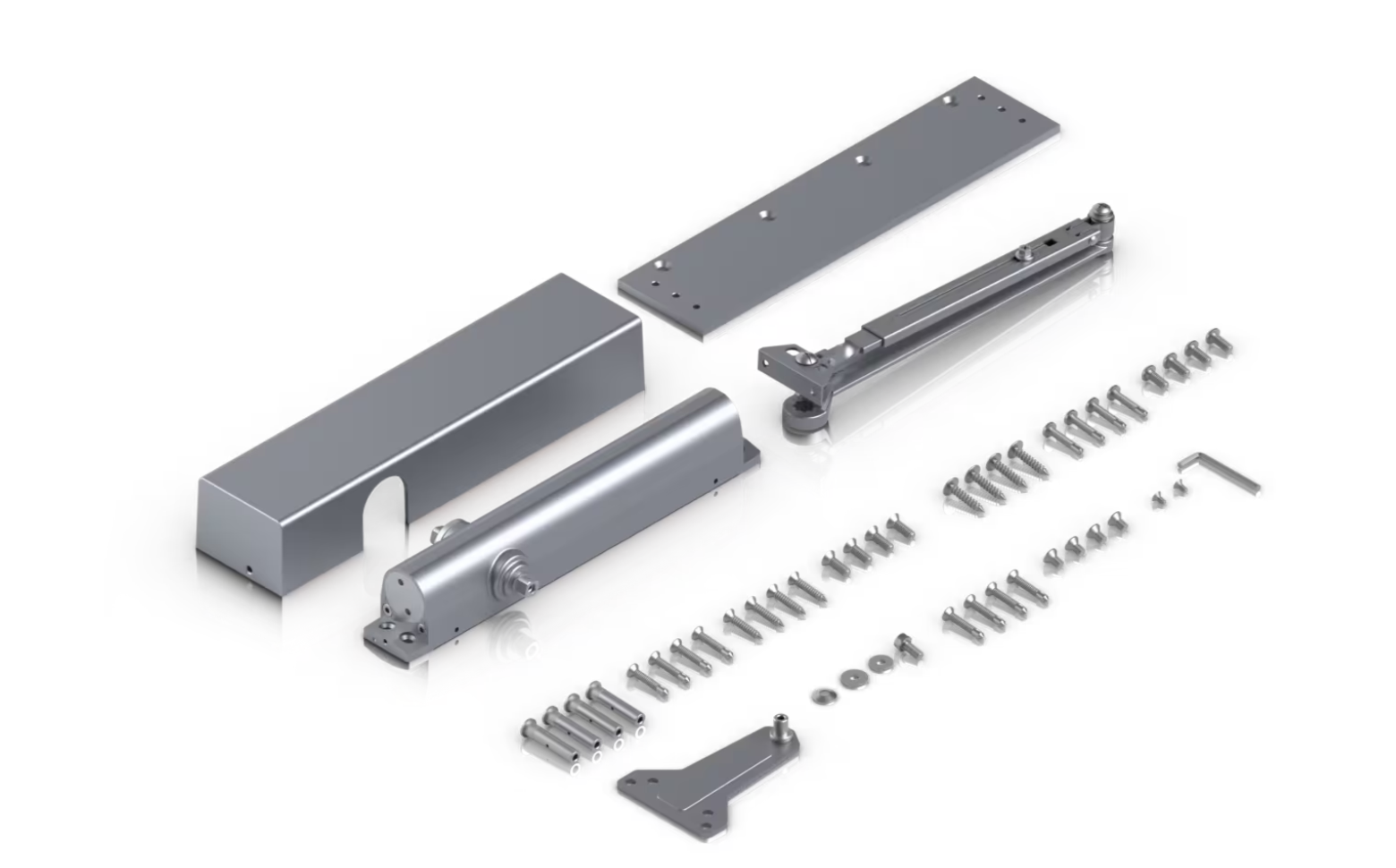

Hardware
Max. Door Size
Standard Door/Top Jamb Mount
30”(762 mm): Size 1 Interior / Size 3 Exterior
36”(914 mm): Size 2 Interior / Size 4 Exterior
42”(1067 mm): Size 3 Interior / Size 5 Exterior
48”(1219 mm): Size 4 Interior / Size 6 Exterior
Parallel Arm Bracket Mount
30”(762 mm): Size 1 Interior / Size 3 Exterior
36”(914 mm): Size 2 Interior / Size 4 Exterior
42”(1067 mm): Size 3 Interior / Size 5 Exterior
48”(1219 mm): Size 4 Interior / —
Application Range
Standard door mount on the pull side
Top jamb mount on the push side
Parallel arm bracket mount on the push side (Size 1-5 only)
Power Size
1-6
Certifications
UL 228, UL 10C, ANSI/BHMA A156.4-(2019) Grade1, ANSI A117.1 ADA
