Ubiquiti Access Lock Electric

Mechanical

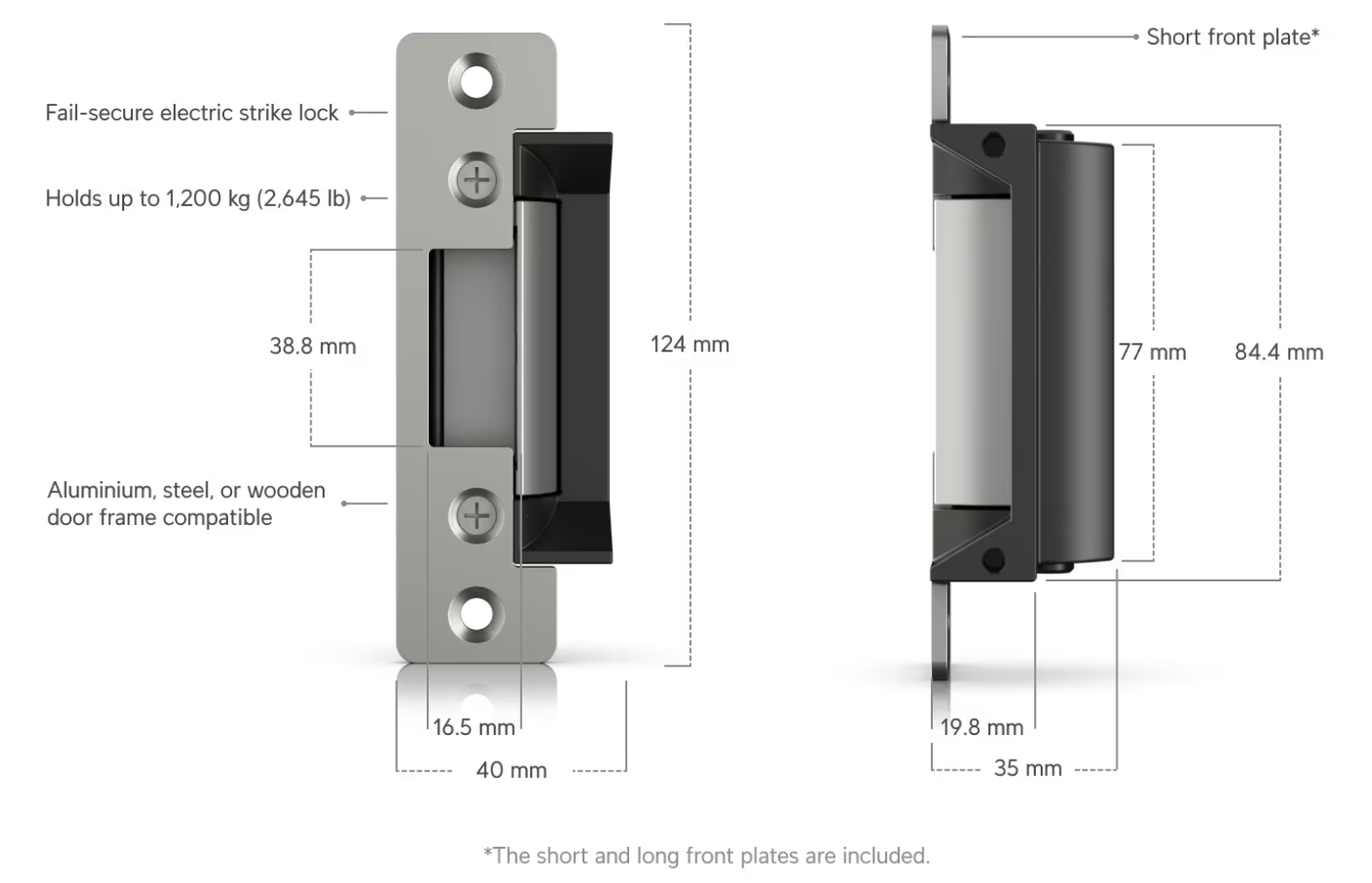

Dimensions Lock body: 80 x 40 x 35 mm (3.2 x 1.6 x 1.4")
Short front plate: 124 x 32 x 3 mm (4.9 x 1.3 x 0.1")
Long front plate: 202 x 36 x 3 mm (7.9 x 1.4 x 0.1")
Weight Lock body: 185 g (6.5 oz)
Short front plate: 50 g (1.8 oz)
Long front plate: 130 g (4.6 oz)
Enclosure material Lock body: zinc alloy
Front plate/latches: stainless steel
Hardware
Voltage 12V DC
Current power 400mA ±10%

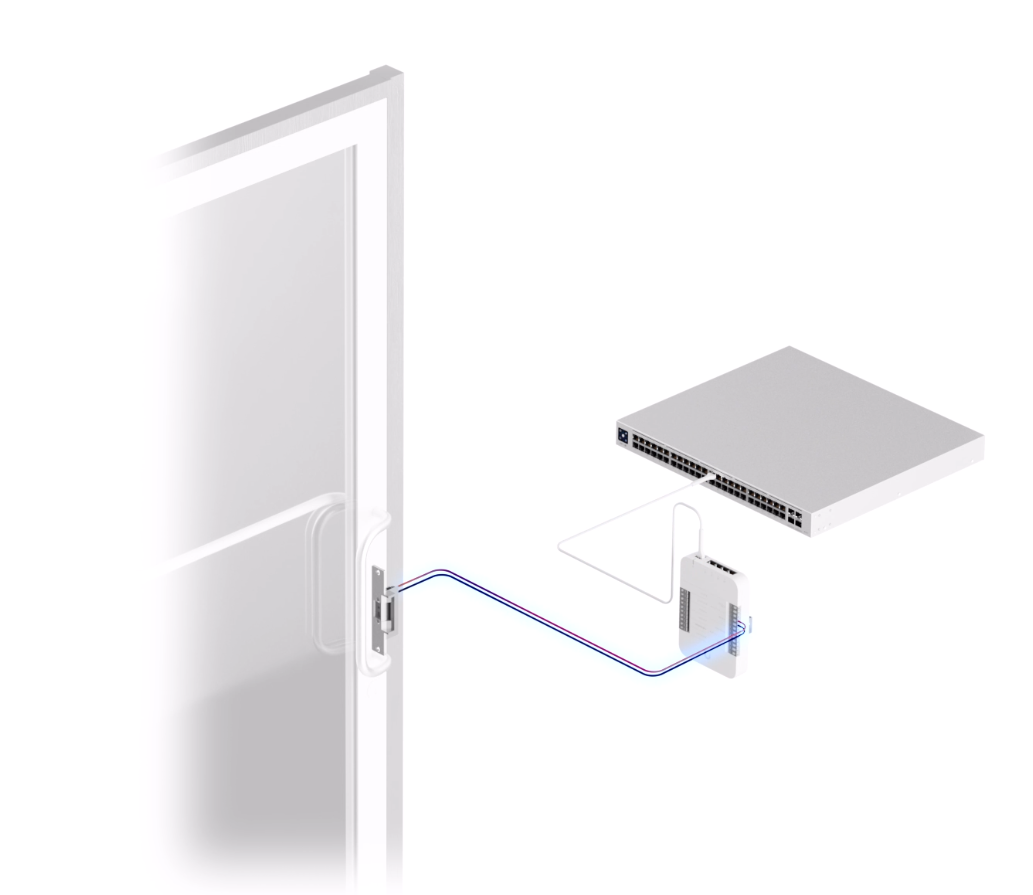

Wiring connection Connect the two screw terminal separately to powered lock relay on UA-Hub: NO, COM
Lock type Fail secure lock
Single door
Lock holding force 1,200 kg (2,645 lb)
Suitability Wooden, steel, aluminum door
Screw terminal + and -
Ambient operating temperature -10 to 45° C (14 to 113° F)
Ambient operating humidity 5 to 90% noncondensing
