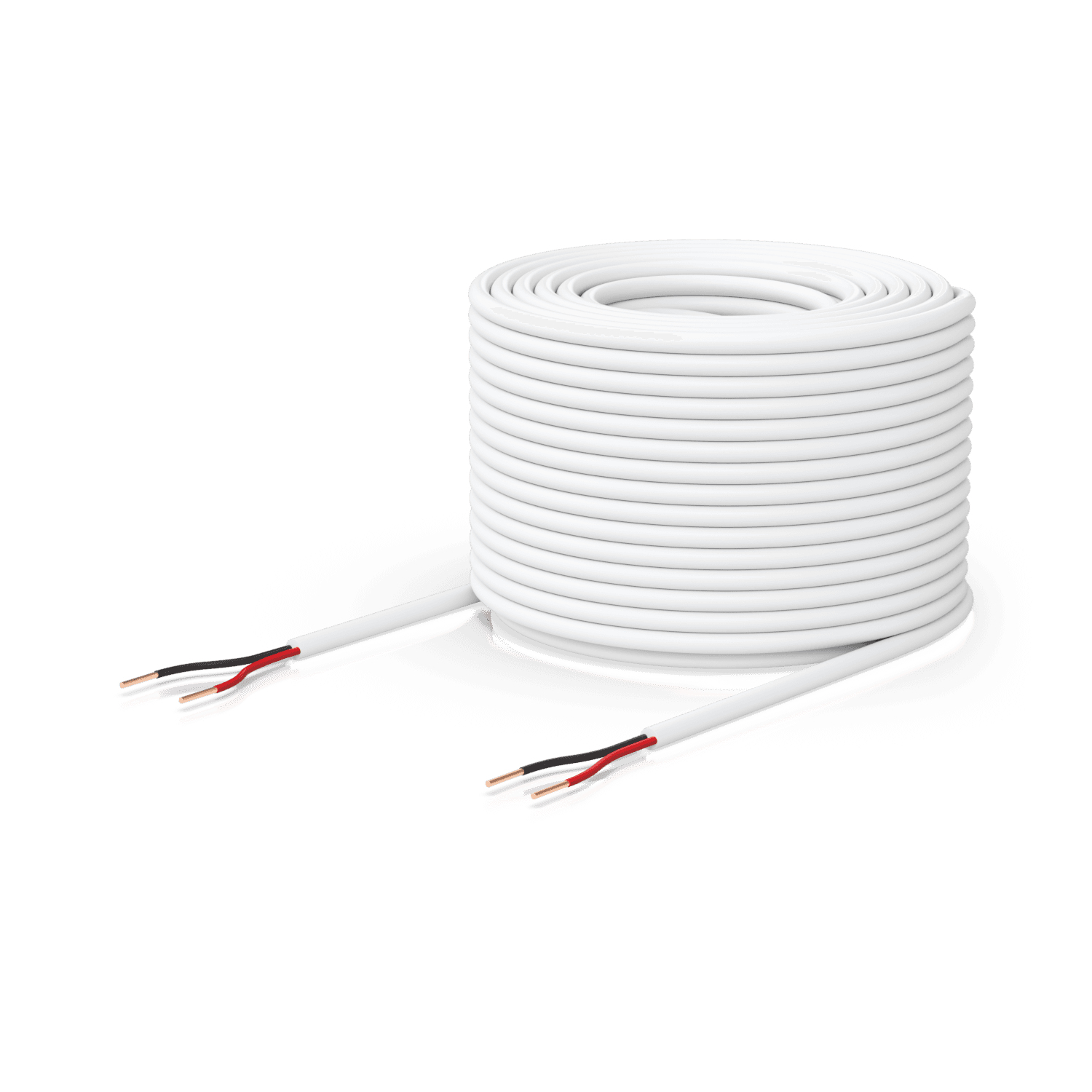

Length
152.4 m (500 ft)
Material
Conductor: Solid bare copper
Jacket: Thermoplastic elastomer (TPE)
Insulation: Semi-rigid polyvinyl chloride (SR-PVC)
Insulation Color
UACC-Cable-DoorLockRelay-2P: black/red (18AWG), amber/white (22AWG)

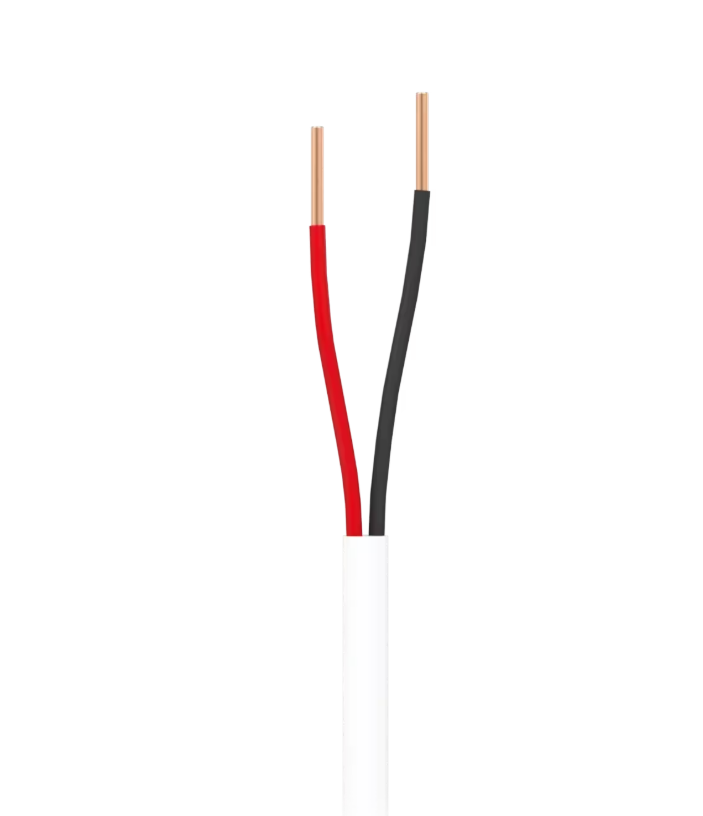

UACC-Cable-DoorLockRelay-1P: black/red (18AWG)
Weight
UACC-Cable-DoorLockRelay-2P: 5.6 kg kg (12.3 lb)
UACC-Cable-DoorLockRelay-1P: 4.58 kg (10.1 lb)
Flame Rating
VW-1
Current Rating
18AWG: 2A for 500 ft length
22AWG: 1A for 500 ft length
Conductor Wire Gauge
UACC-Cable-DoorLockRelay-2P: 18/22 AWG
UACC-Cable-DoorLockRelay-1P: 18 AWG
Cable
Jacket Outer Diameter
UACC-Cable-DoorLockRelay-2P: 4.5 mm (0.18")
UACC-Cable-DoorLockRelay-1P: 4.2 mm (0.17")
Bend Radius
UACC-Cable-DoorLockRelay-2P: 56 mm (2.2")
UACC-Cable-DoorLockRelay-1P: 33 mm (1.3")
Jacket Color
White
Pulling Tension
UACC-Cable-DoorLockRelay-2P: 24.2 kgf
UACC-Cable-DoorLockRelay-1P: 16.4 kgf
Conductor DCR
UACC-Cable-DoorLockRelay-2P: 23.2 ohm/km (18AWG), 59.4 ohm/km (22AWG)
UACC-Cable-DoorLockRelay-1P: 23.2 ohm/km (18AWG)
Supported Voltage Range
36V DC
Number of conductors
UACC-Cable-DoorLockRelay-2P: 4
UACC-Cable-DoorLockRelay-1P: 2
Ambient Storage Temperature
-45 to 65° C (-40 to 149° F)
